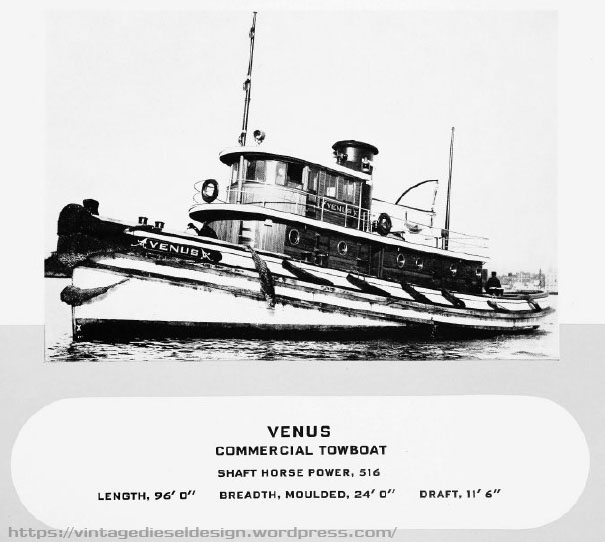

In early 1930, the Mystic Steamship Company sat down and had the firm of John C. Alden Naval Architects of Boston design them a pair of tugboats for their Boston Tow Boat operation. Built by M.M Davis & Sons Shipbuilding of Solomons, Maryland, they would be powered by the then growing in popularity – Diesel Electric Drive. While steel shipbuilding was gaining traction, the twins were both built out of wood.
The duo would go on to become flagship tugs for the company, and were used in a number of advertising for Winton, Cleveland Diesel and General Electric. By the late 1930’s, Boston Tow Boat would be reorganized as the Boston Towboat Co., now under parent company Eastern Gas & Fuel Associates, and ultimately falling under the Midland Enterprises banner, parent company to numerous inland tug and barge companies.

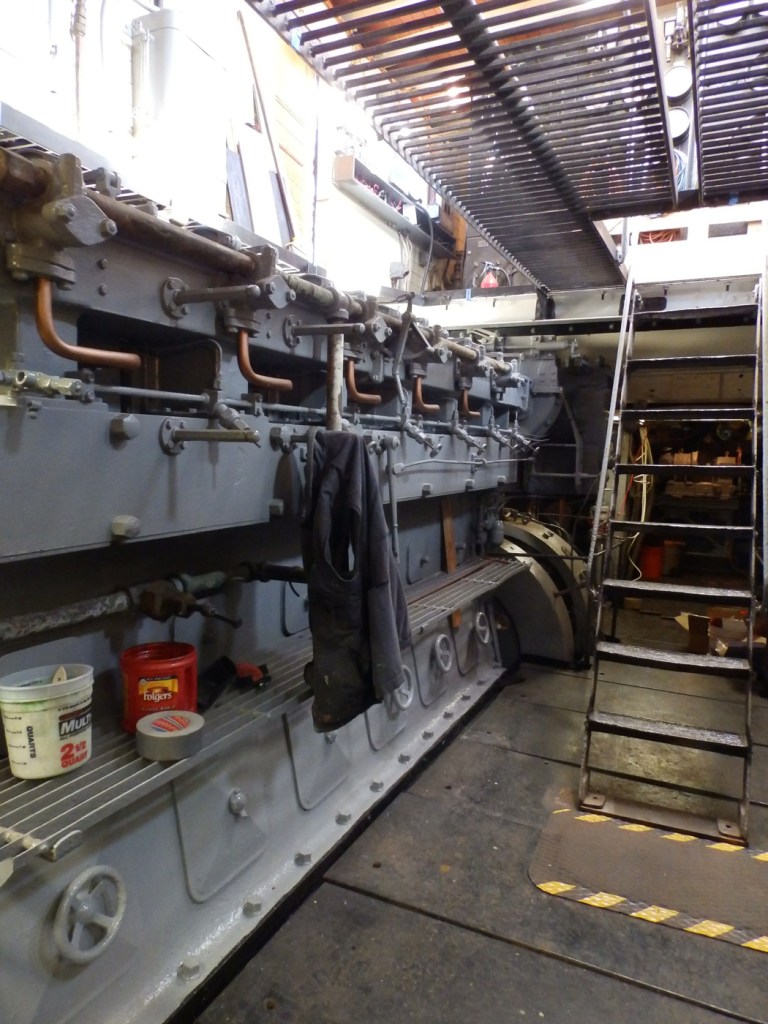

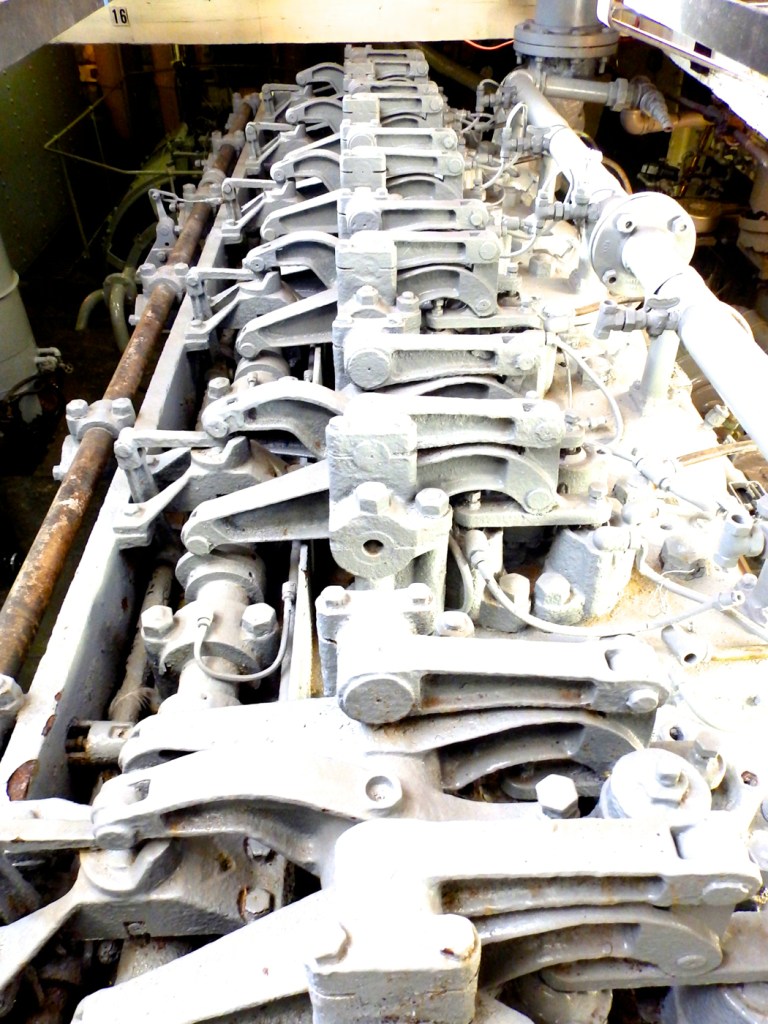

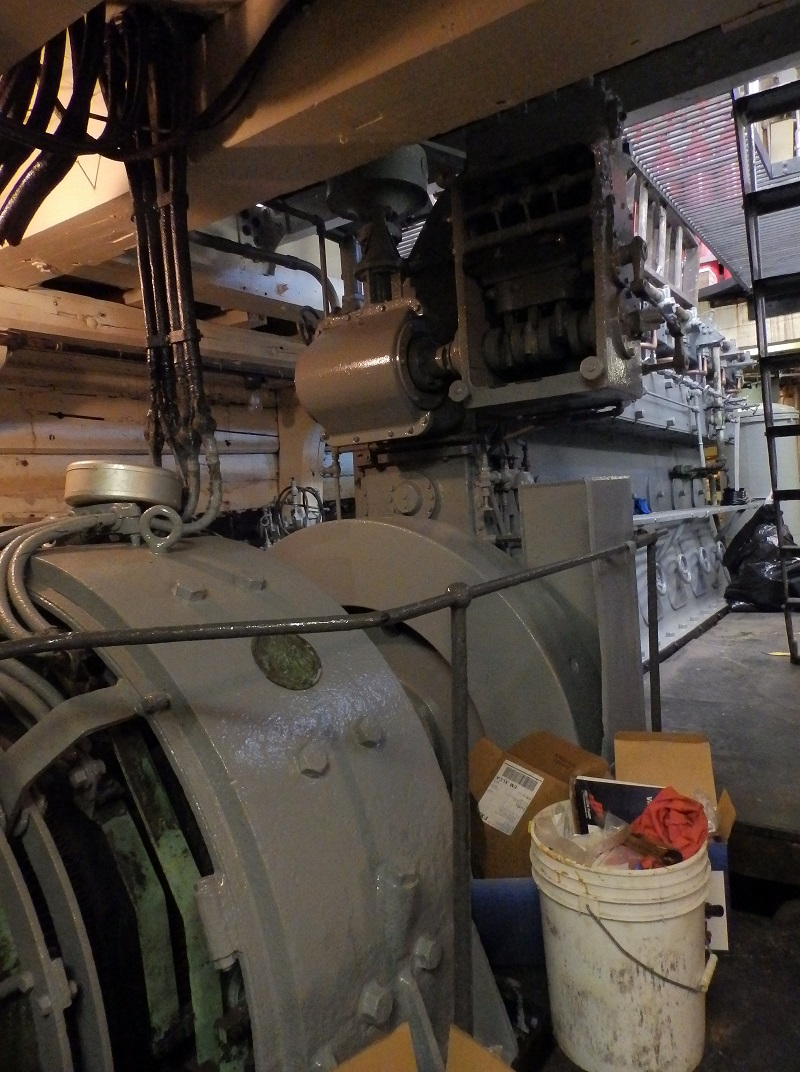

Luna and Venus are each powered by a pair of Winton 6 cylinder, 335HP/300RPM model 129 engines. Each engine drives a General Electric 213kW, 250V DC generator, with a 25kW exciter/generator mounted behind them on the same shaft. A single GE 516HP, 500V double armature (think of it as two 258HP motors together on a common shaft) electric propulsion motor would spin the prop at up to 125RPM. A battery bank was provided in the fidley to power the compressors and other auxiliary as needed. A major change bought on with Diesel Electric drive, now the Captain had full control of the propulsion right in the wheelhouse, and he did not have to rely on the engineer downstairs through a system of bells to control the engine. The Luna is often credited with being the first Diesel-Electric tug, however this is not true. That honor goes to the Pennsylvania Railroad #16, built in 1924. Luna may have been the first Diesel Electric tug in Boston, or even the first Diesel-Electric Ship Docking specific tug, but she was not the first overall.

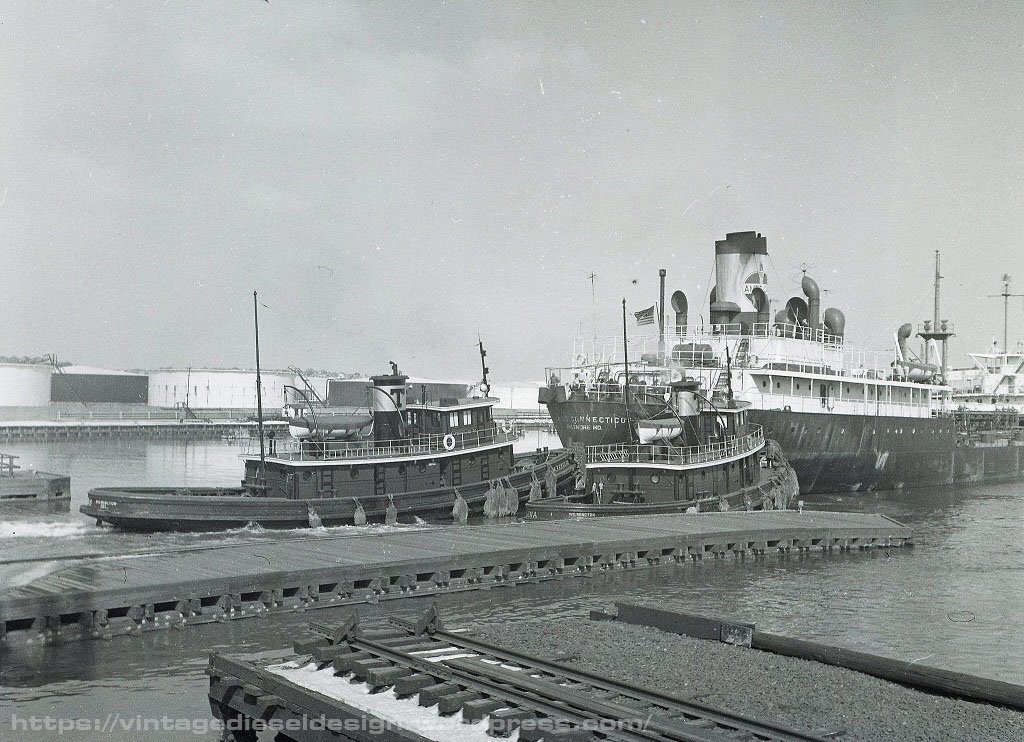

The Luna and Venus, now painted in Boston Towboats deep red, with a silver stack band (its no varnished wood, but it was one of the authors favorite color schemes for a tug company) were working alongside the rest of the Boston Towboat fleet providing mainly ship docking work in the Boston area. Unfortunately, tugs grew quickly, so even by the 1950’s they were rather outdated and very under-powered. Luna and Venus were both retired in 1971 and languished around Boston for several years. Venus was owned by Bay State Cruise Co., and used as an office at Long Wharf. Luna was planned to become a reef. Boston Towboat itself would not be around much longer either, they would become part of Boston Fuel Transport in 1985.
By the early 1980’s, plans were in place to save the Luna. She was listed on the National Register of Historic Places in 1983. She and sister Venus were back together in the Charles River Basin, and Luna was being used as an office for the Terra/Marre Research & Education Society, her then owners. The Luna was under restoration and open for tours, and was still operational with one engine running, although she still sat unused. By the late 1980’s, the tug was now owned by/under control of the Metropolitan District Commission.

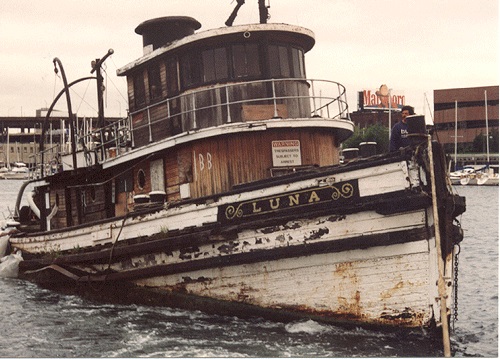

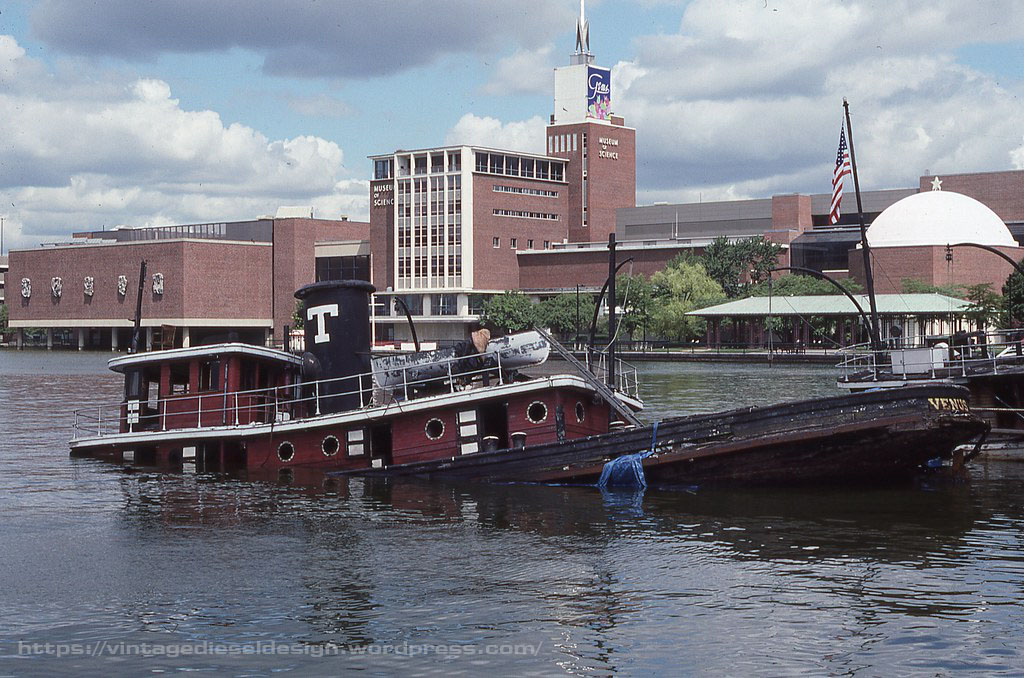

The inevitable finally caught up with the 60 year old tugs. Luna was beached and awash, with sister Venus next to her sunk by the bow. A plan was finally in place by the MDC, and Luna was raised in the summer of 1992 and towed to Jay Cashmans yard. Luna was being kept afloat with a 6″ pump running around the clock, and one night the pump ran out of fuel, and down she went at the dock.
Luna was finally raised, again and towed into the drydock at the former Bethlehem Shipyard in East Boston in December 1993. Fate would not be as kind to Venus, and she was broken up. Luna languished in the drydock until mid 1994 when the Luna Preservation Society was formed. The new group took over the project from the MDC, and was able to get the Luna stabilized by wrapping the hull in PVC roofing material, which kept her floating for the next 5 years. In 2000 the Luna was towed to Sample Shipyard in Maine, and underwent a 2 year long hull restoration.

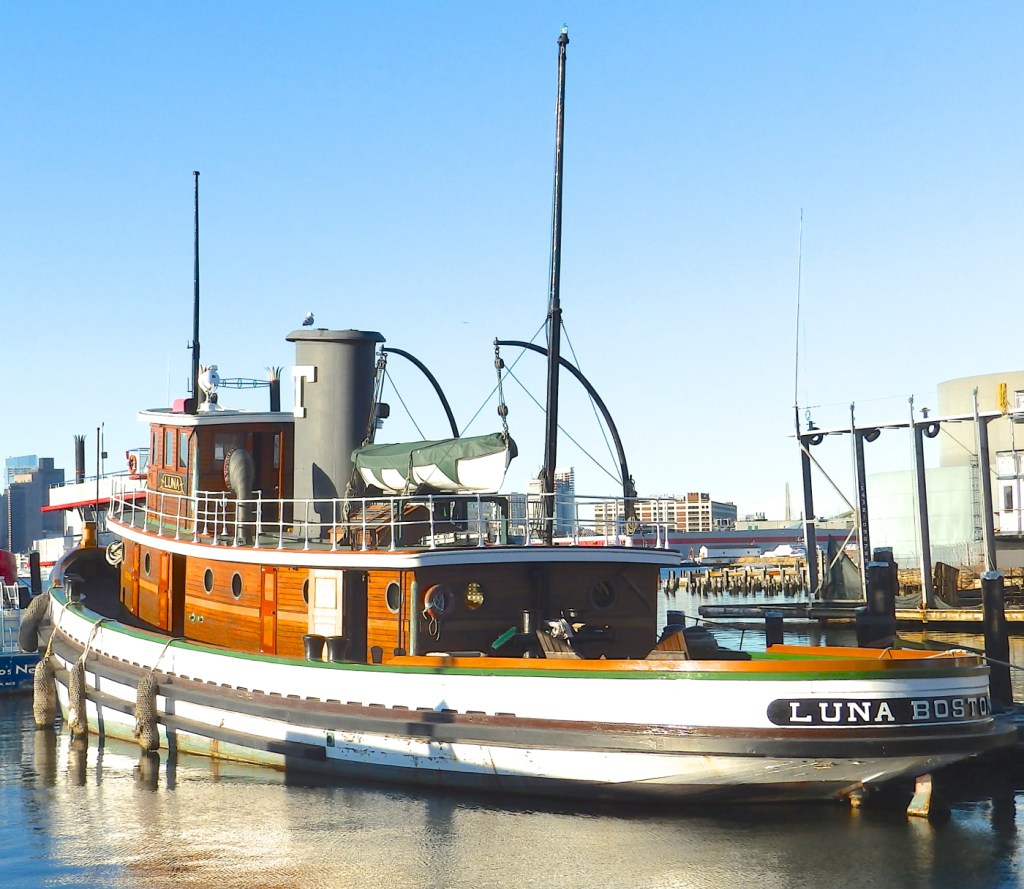

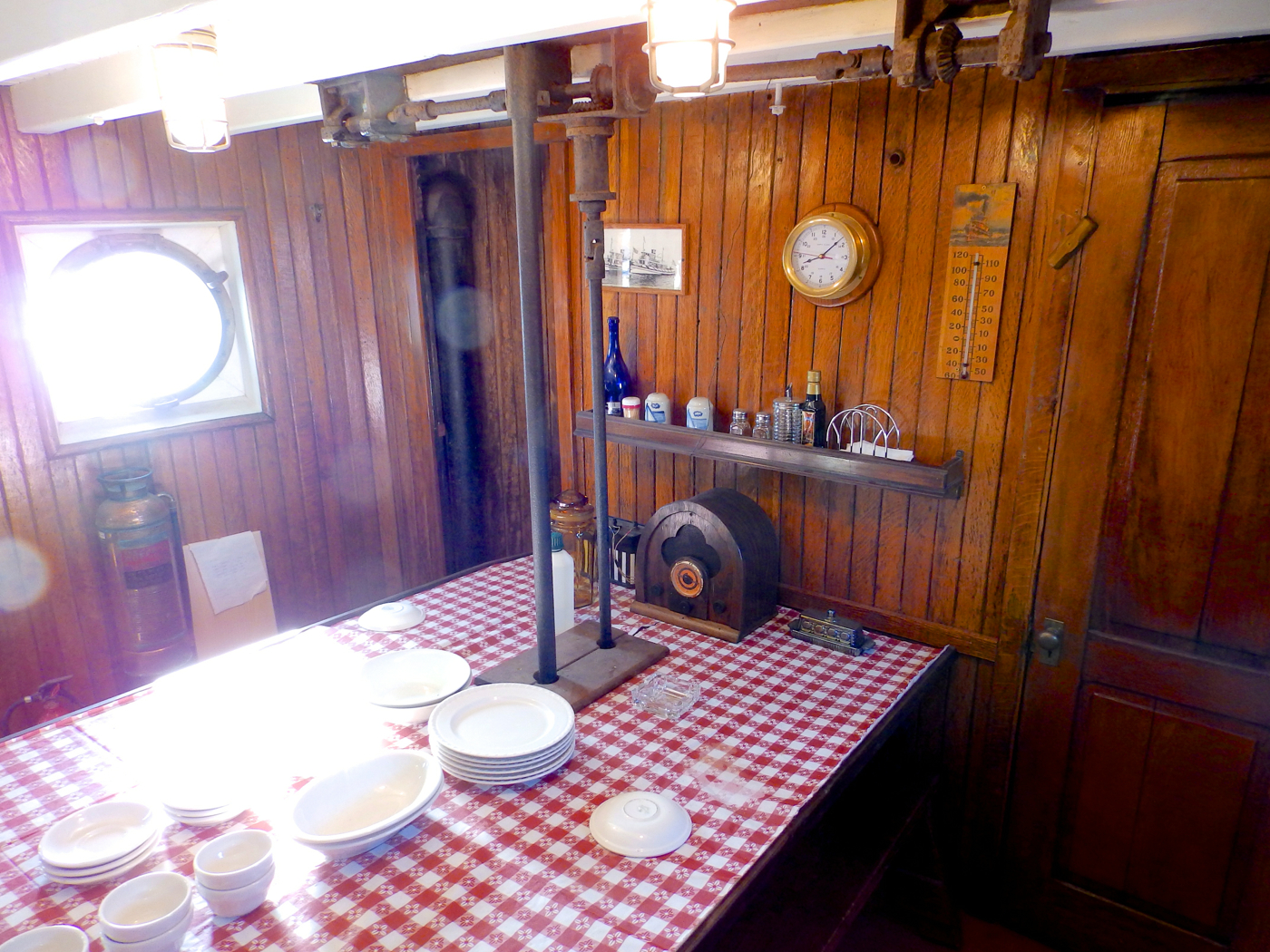

Volunteers have since done an amazing job returning the Luna to her 1930’s appearance. The current plan is for her to become a new centerpiece at Pier 3, in the Boston Navy Yard. Unfortunately, having been submerged for so long, Luna will likely never run again. There were some plans to possibly install a small diesel engine in the back of the engine room so she could do some light cruising in the Harbor – Boy how I hope this does not happen. She serves her purpose well as a stationary vessel, a testament of 1930’s tugboat technology.
Here is hoping for a bright future for the Luna in her new home at the Navy Yard. Unfortunately the Luna Preservation Society’s website has not been updated in 17 years. http://www.tugboatluna.org/
Many thanks to Pat Folan and Will Van Dorp for use of their photos, and of course J. Boggess for scanning the Winton records and Cleveland booklets. Thanks to several of my Boston area tug friends for help with clearing up some details.
Be sure to check out Pat’s website Pelican Passage for some fantastic tugboat shots – http://www.pelicanpassage.com/
And of course Will Van Dorp’s blog Tugster (who was the initial inspiration for making this blog!) – https://tugster.wordpress.com/
