The Delta plant is home to a trio of F-M model 33 engines. Before we get to those, here is a little background on the Model 33 engine.
The Model 33 engine was the next model in line after the 32 series, and was introduced around 1930. The engine was ultimately offered in 3 bore sizes – a 12″, 14″ and 16″. The engine was FM’s first pump scavenged engine, moving up from the older crankcase scavenged 32. Like the predecessor, these were rather simple engines. No intake or exhaust valves, mechanical fuel injection (in a time when air injection was still somewhat common) and a split lubrication system using both an engine driven pressure pump and a force feed mechanical lubricator.
In the case of this post, we will be describing the 16″ bore model, which has a 20″ stroke rated at 300RPM. FM offered these engines in 4, 5, 6, 7, 8 and 10 cylinder sizes. The engine was available with a dual fuel option, meaning it could run on Diesel, or Natural Gas with Diesel acting as a pilot fuel. A second upper camshaft drives a series of gas valves at each cylinder head. The Delta plant has 3 of these engines:
Unfortunately I did not ask as to the chronological history as to just when these engines were installed.
Lets start at Engine #1 – Click on images for larger versions

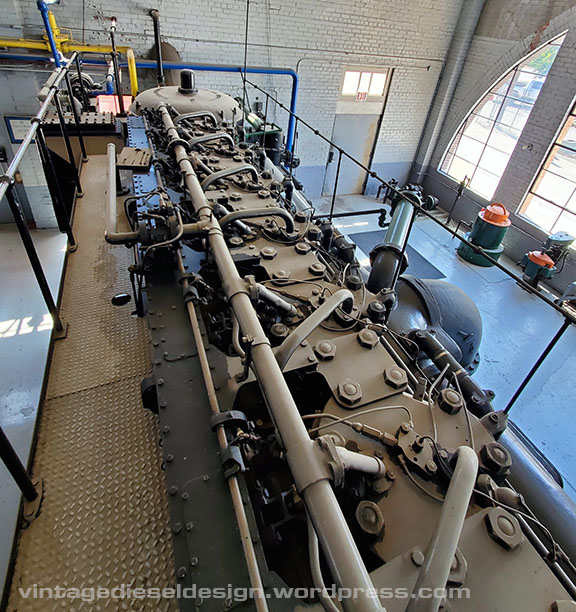

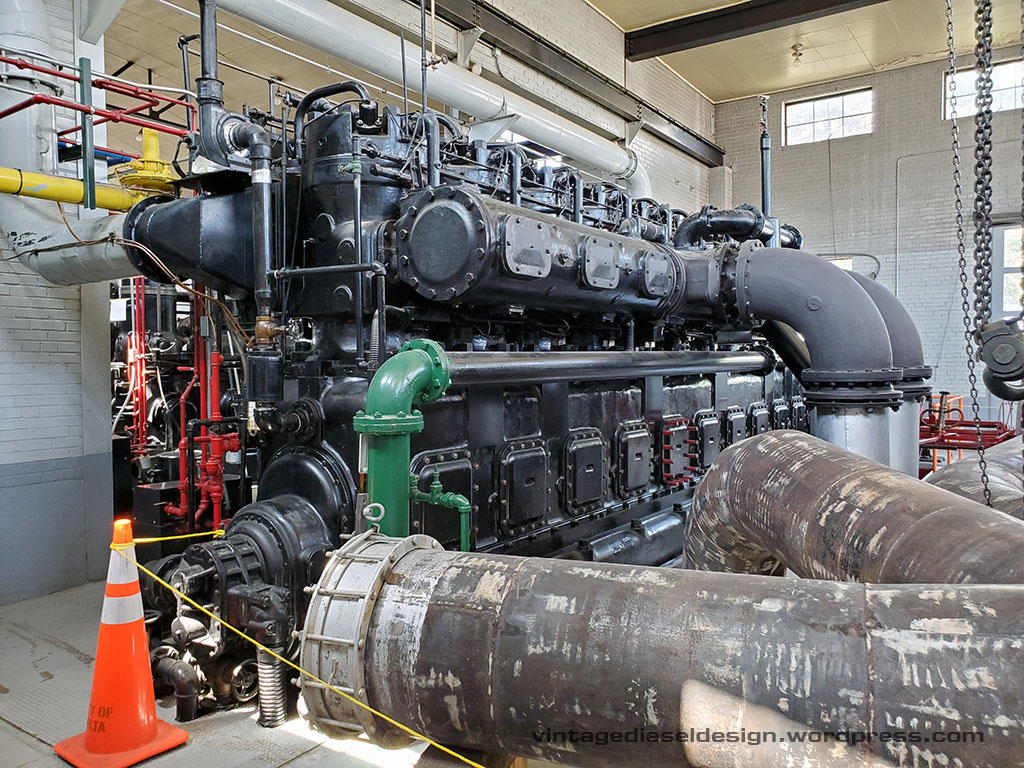

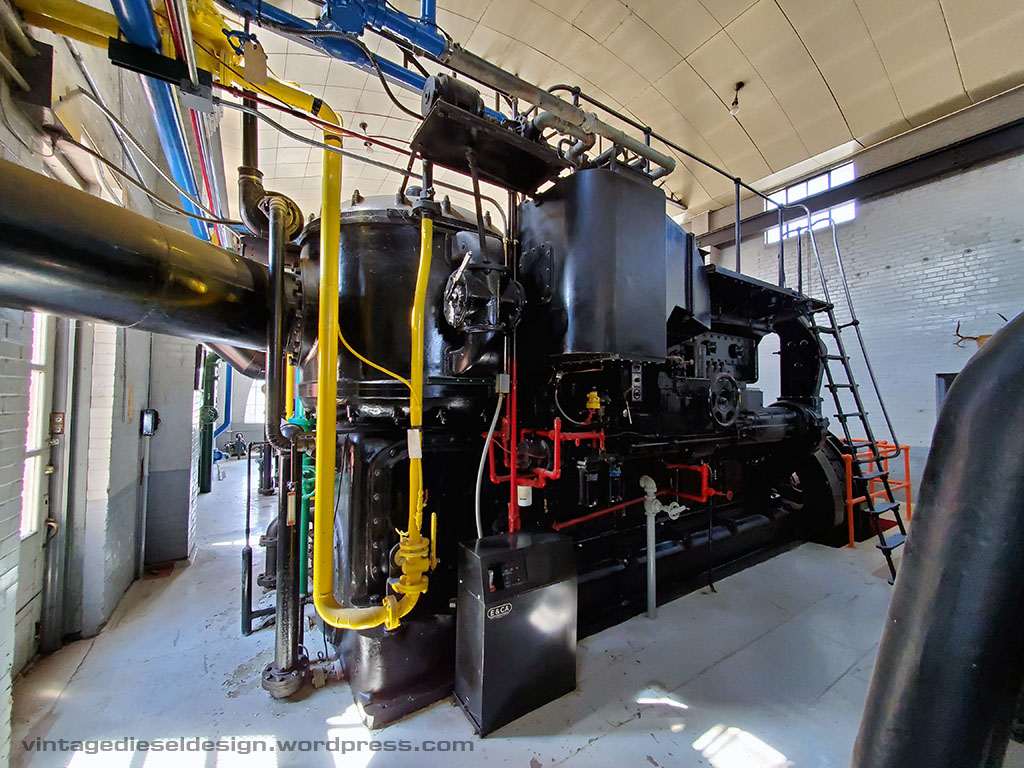

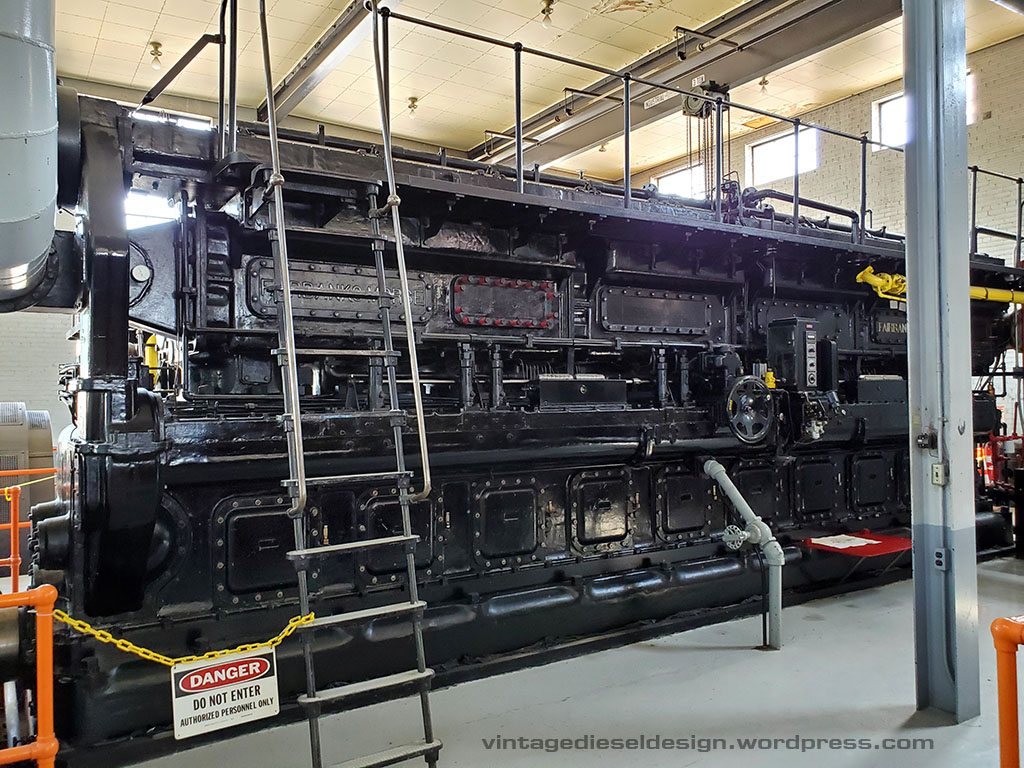

Looking at #1, we see the main exhaust leading into the floor, where it then heads outside into the muffler. Mounted on the side of the scavenging pump is the lube oil heat exchanger, as well as a set of oil strainers.

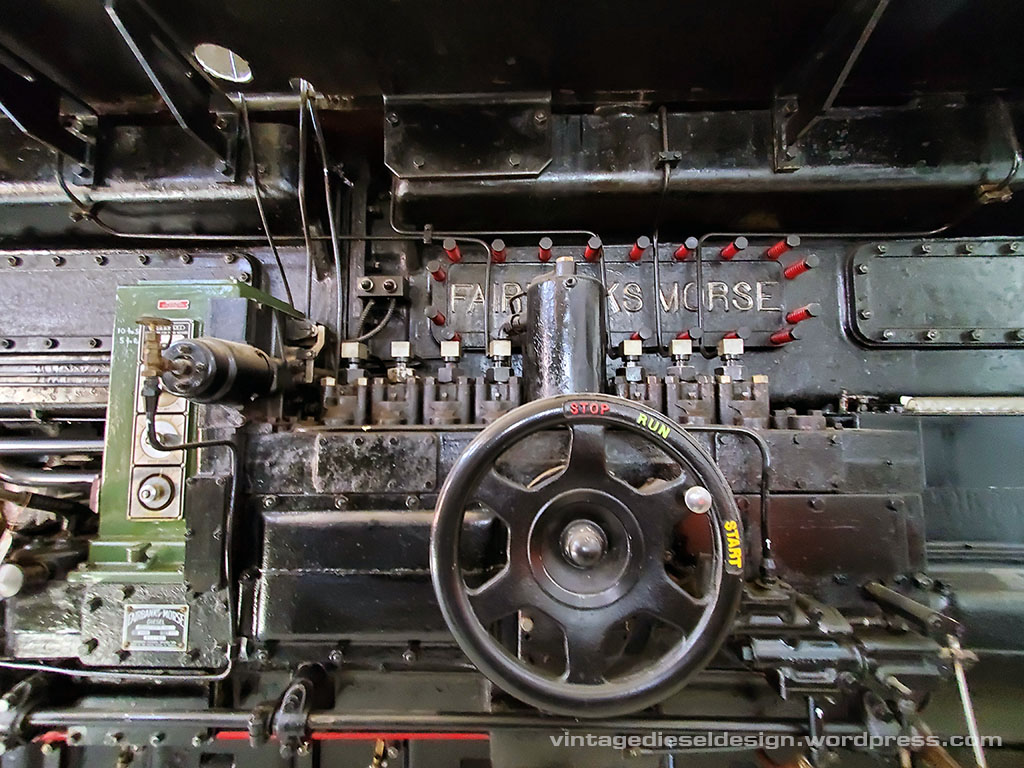

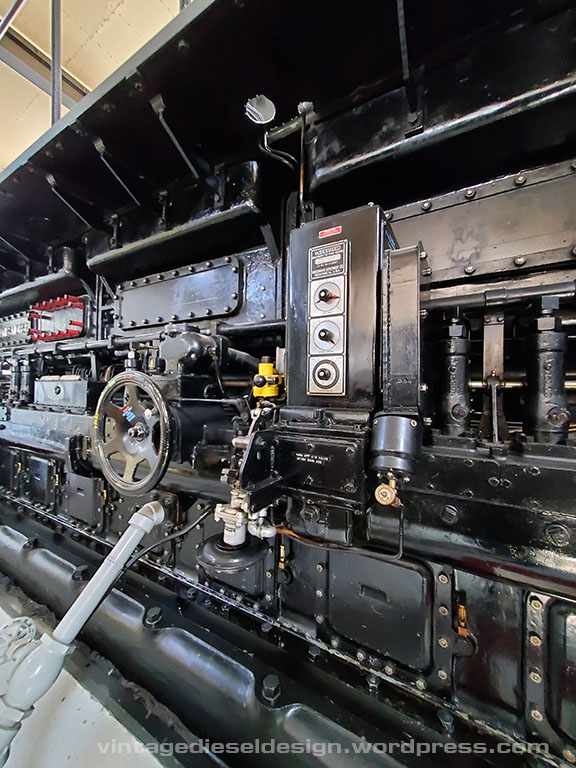

On the side of the engine is the starting hand wheel, fuel injection pumps, and the Woodward governor.
On the left side is the Natural Gas header pipe, with the starting air pipe being the other large pipe going into the head. In the center is the fuel injection nozzle.

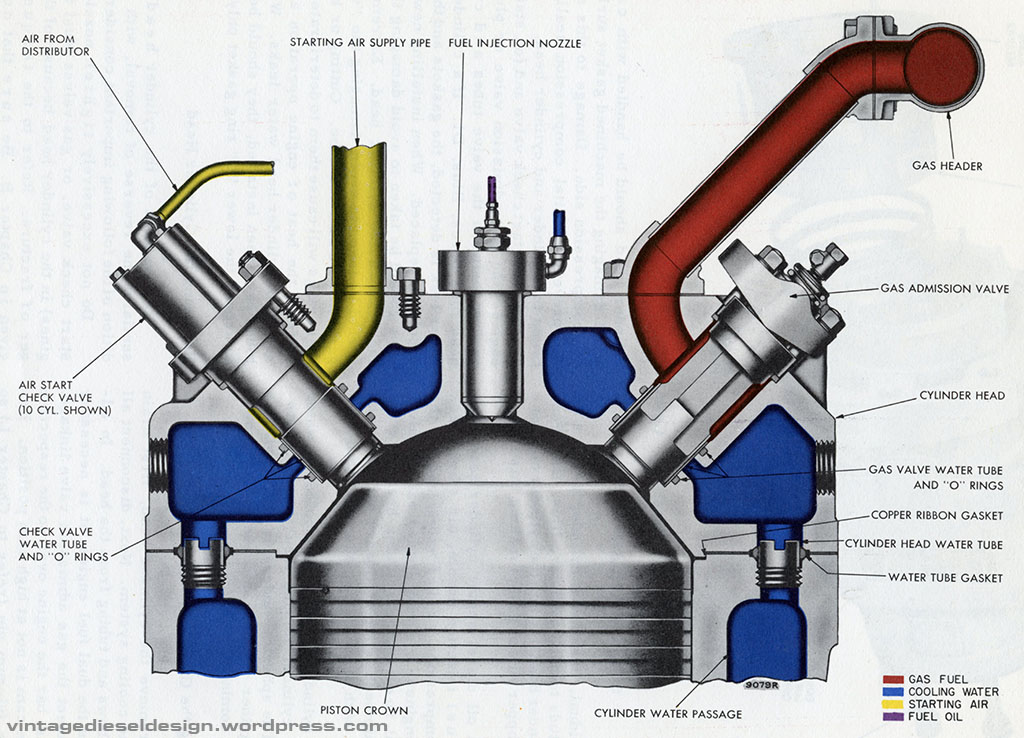

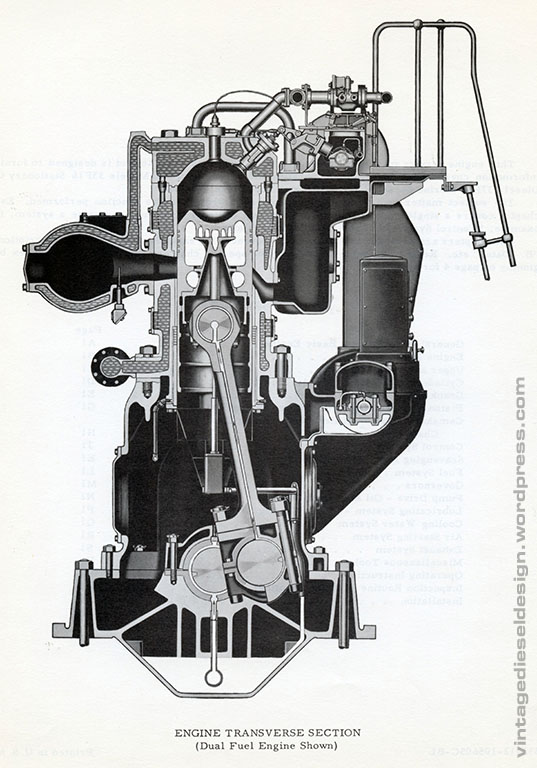

A look at the cylinder head cross section.

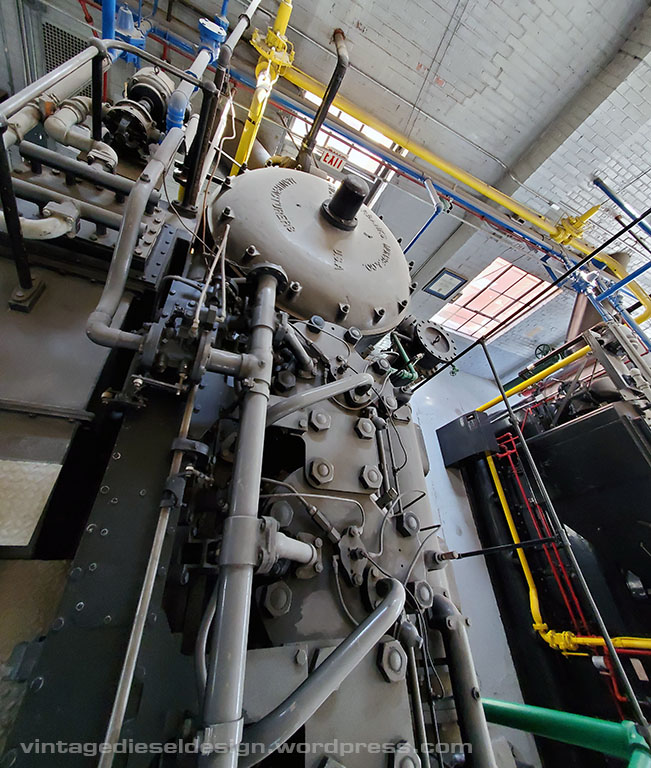

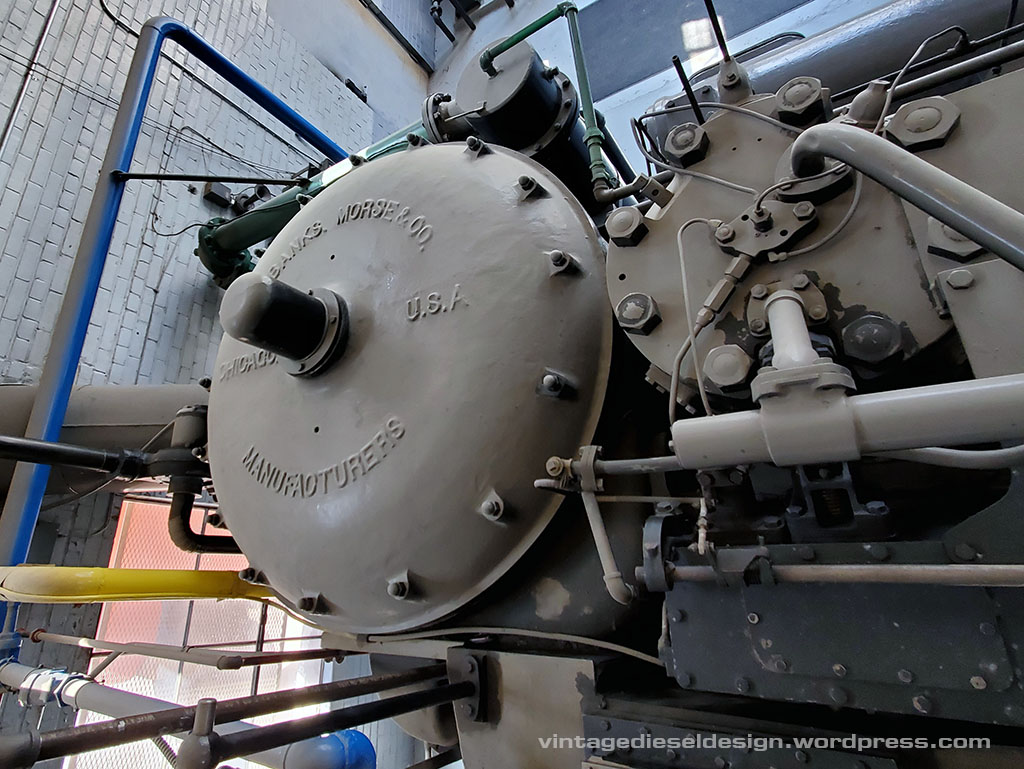

Top of the scavenging pump.

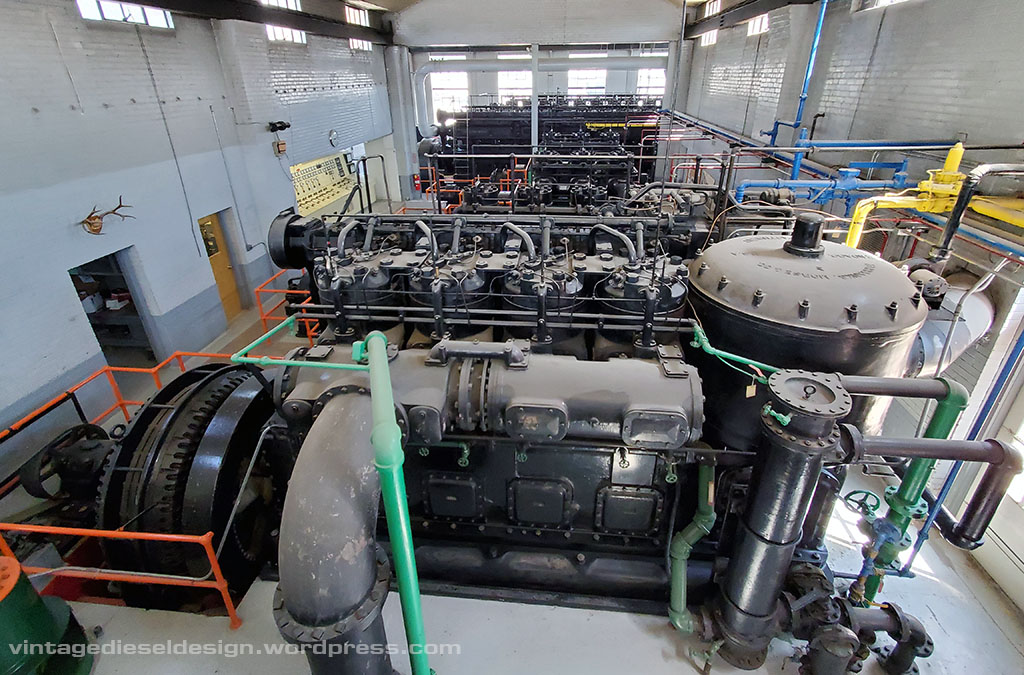

Control side of the engine. I honestly do not know what the additional box is between the scavenging pump and the intake belt is, but I do believe it is an intercooler of sort. I have not seen this on any other FM engine, and I did not notice it to ask when I was there. I imagine it has to do with emissions.

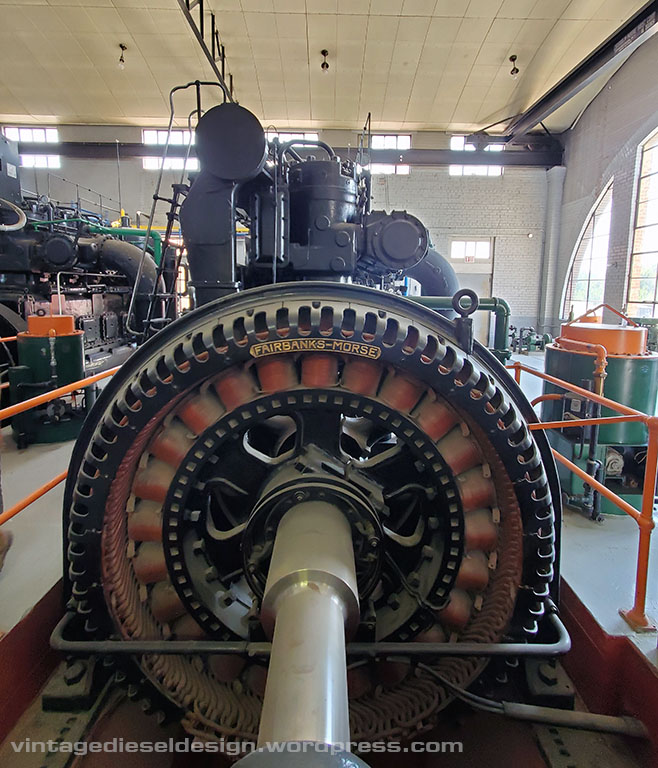

The engine drives an 835kW AC Alternator. F-M supplied all of the electrical gear to the plant as well.

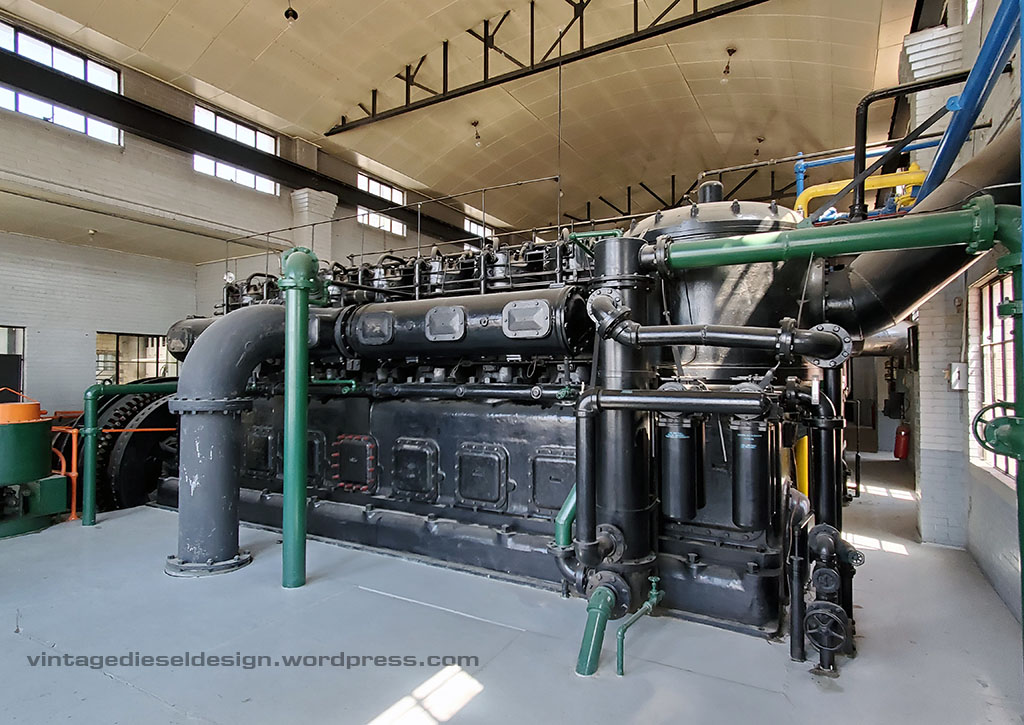

Straight on side view of the engine. This engine in marine form was known as the model 37F16, a direct reversible engine common to tugboats in the 1950’s. A final look at Engine #1.
Engine #2

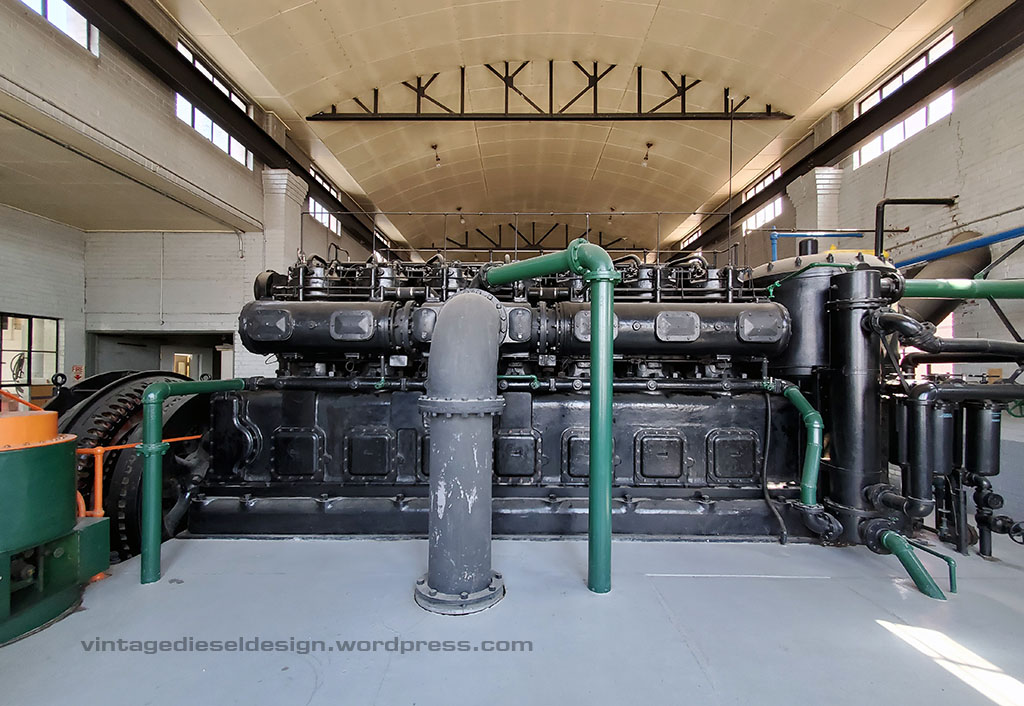

Engine #2 is a small, 4 cylinder 33D16 engine. F-M would upgrade the letter designation as the engines advanced through the years, thus this is the older of the trio, being a “D” engine.
Other then being short 2 cylinders, the engine is exactly the same as #1 above.
What is interesting is the additional plates between the cylinder heads. I have never seen these on a marine engine.
While I thought I thought I got photos of everything, I missed getting a photo of several data plates, thus I do not know how large the Alternator is that this engine drives.
Engine # 6

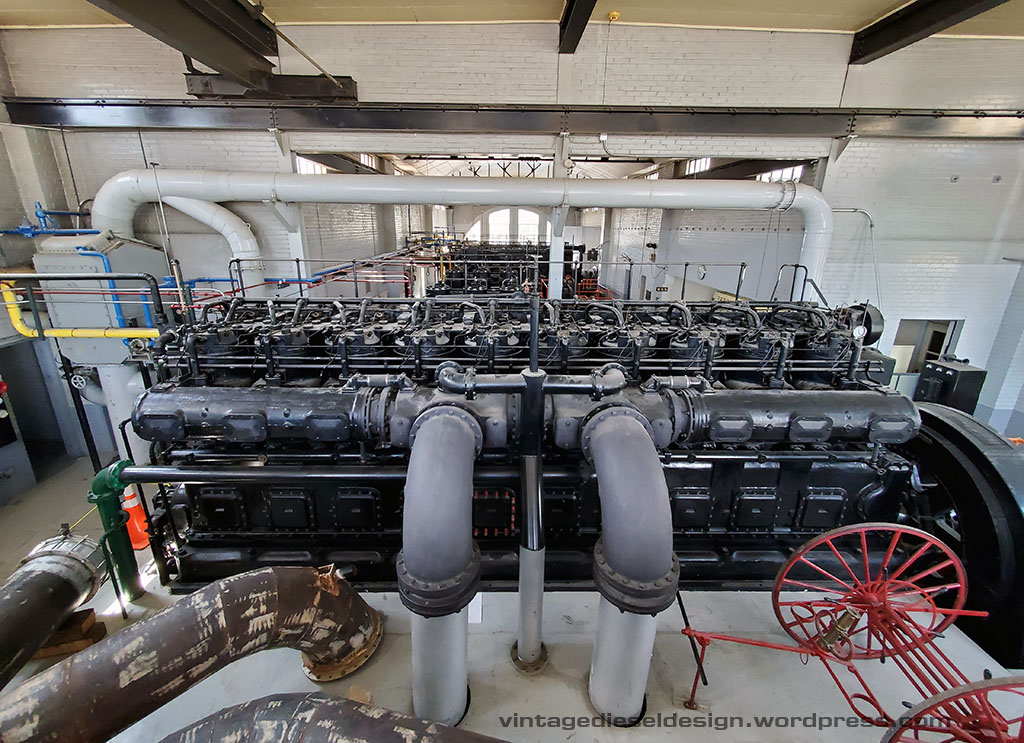

Engine #6 at Delta is the 2nd largest engine of the plant, rated at 2,000HP.

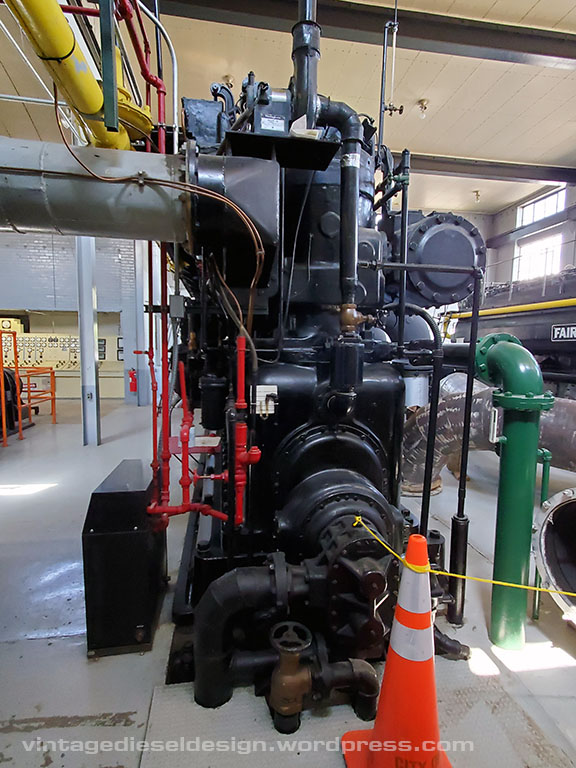

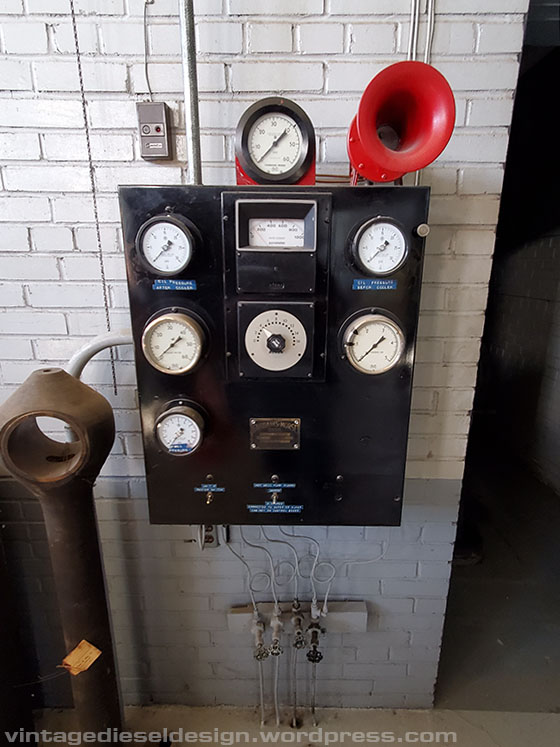

Notice anything missing? No scavenging pump! The 10 cylinder model utilized a motor driven centrifugal blower, mounted externally. We will discuss these more when we get to the 31A18.On the front of the engine is the main lube oil pump. Again, standard controls like the previous engines. Note that this one is the opposite rotation though. The gauge board. Note the feed lines coming up from the floor. The exhaust side of the engine. Note the large grey pipe in the background – this is the scavenging air intake. This engine drives a 1200kW alternator, at 60 cycles.
In the next part we will go over the trio of 32E14 engines at the plant.
