At the end of the last post on the Fairbanks Morse 31A series, I mentioned I was going to draw up the engine in CAD and 3D print it. I am a model builder and a model railroader when I don’t get to play with old engines, boats and locomotives, and even do it as a business now. The model was drawn out and printed in 1/87th scale, better known to model railroaders as HO scale.
I opted to do the 5 cylinder 8 1/2″ version. I am considering making a small diorama depicting the Corpus Christi Pumping station that appears in the post below.

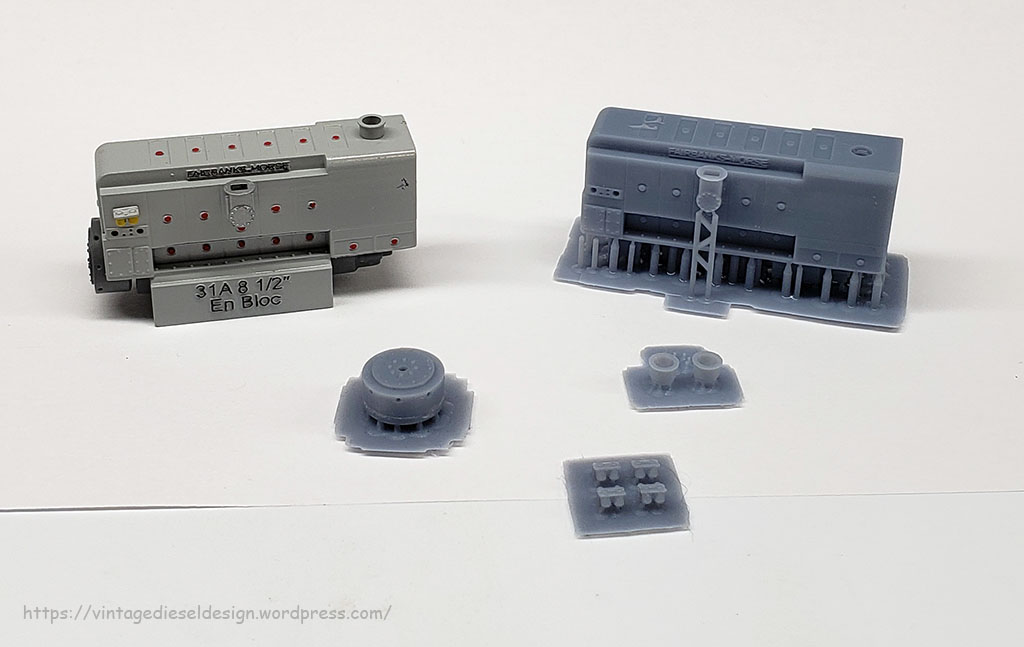

On the left is a finished model, on the right is exactly how it leaves the 3D printer. I decided to make a version of the engine with no base, so that it could be used as a flatcar load.
This is just the first of many engines I am going to build models of. I am already well into the CAD for a few more. You will see those here first! If anyone is interested in one for their railroad – I have them forsale over on my actual business page : https://gothamrailmarine.com/3d-printed-parts/

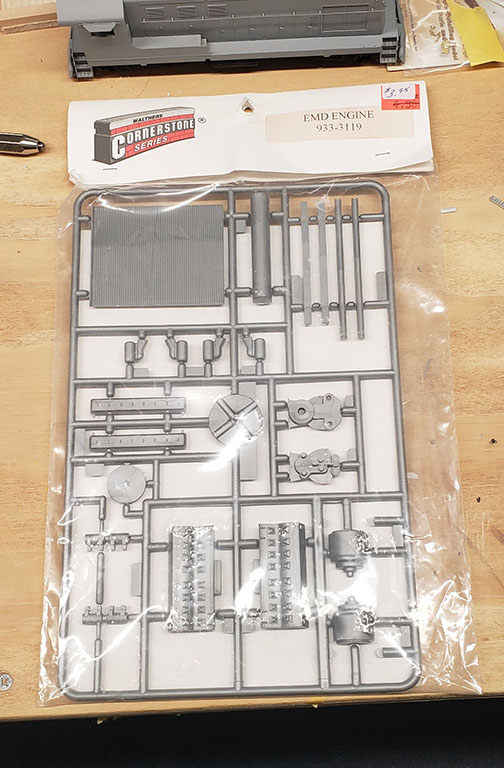

Here is another 1/87th scale engine, an EMD 16-567 offered by Walthers. This kit has been around for 20+ years, and is pretty crude, but not terrible. It is a bit of a mashup between a 567A and a 567B. On my to-do list is a slew of upgrades to make this kit a little more closely resemble something a little nicer. https://www.walthers.com/emd-567-prime-mover-kit
A few years back I cut down one of these kits and made a little 6-567, as if it came out of an SW1 switcher. This sat in the engine facility of my previous layout.
In Part II I will show you some more 3D printed 1/87th engines that are available.
